XD080B120BV1S5 芯達茂 80mohm 1200V SiC MOS
80mohm 1200V TO-247 4L
24小時全國服務熱線：18902855590
24小時全國服務熱線：18902855590
首頁 ? 產(chǎn)品中心 ? 芯達茂XDM
XD080B120BV1S5 80mohm 1200V TO-247 4L 電源(UPS/移動儲能/光伏逆變)

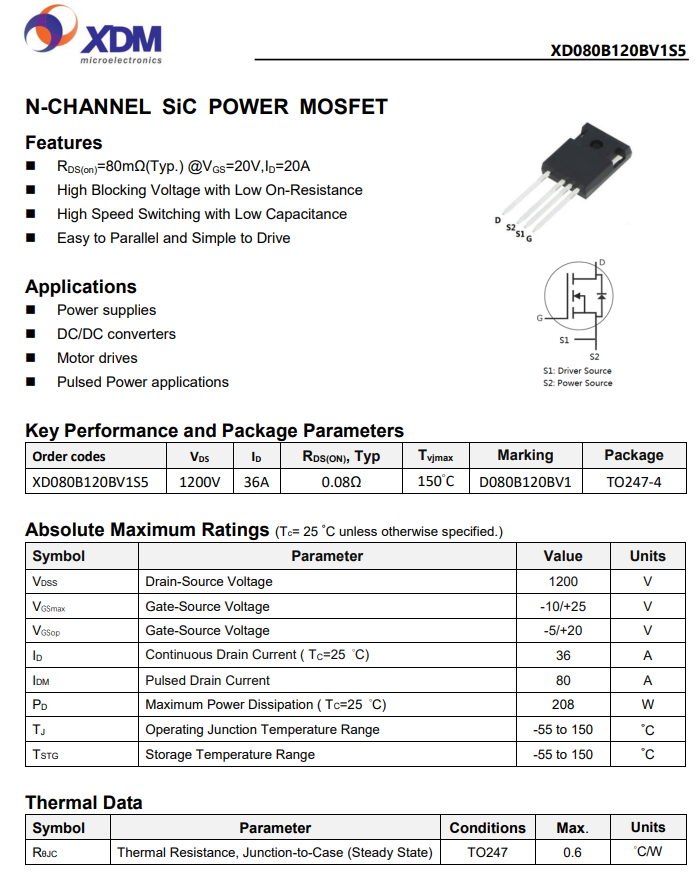

N-CHANNEL SiC POWER MOSFET
Features
? RDS(on)=80mΩ(Typ.) @VGS=20V,ID=20A
? High Blocking Voltage with Low On-Resistance
? High Speed Switching with Low Capacitance
? Easy to Parallel and Simple to Drive
Applications
? Power supplies
? DC/DC converters
? Motor drives
? Pulsed Power applications
